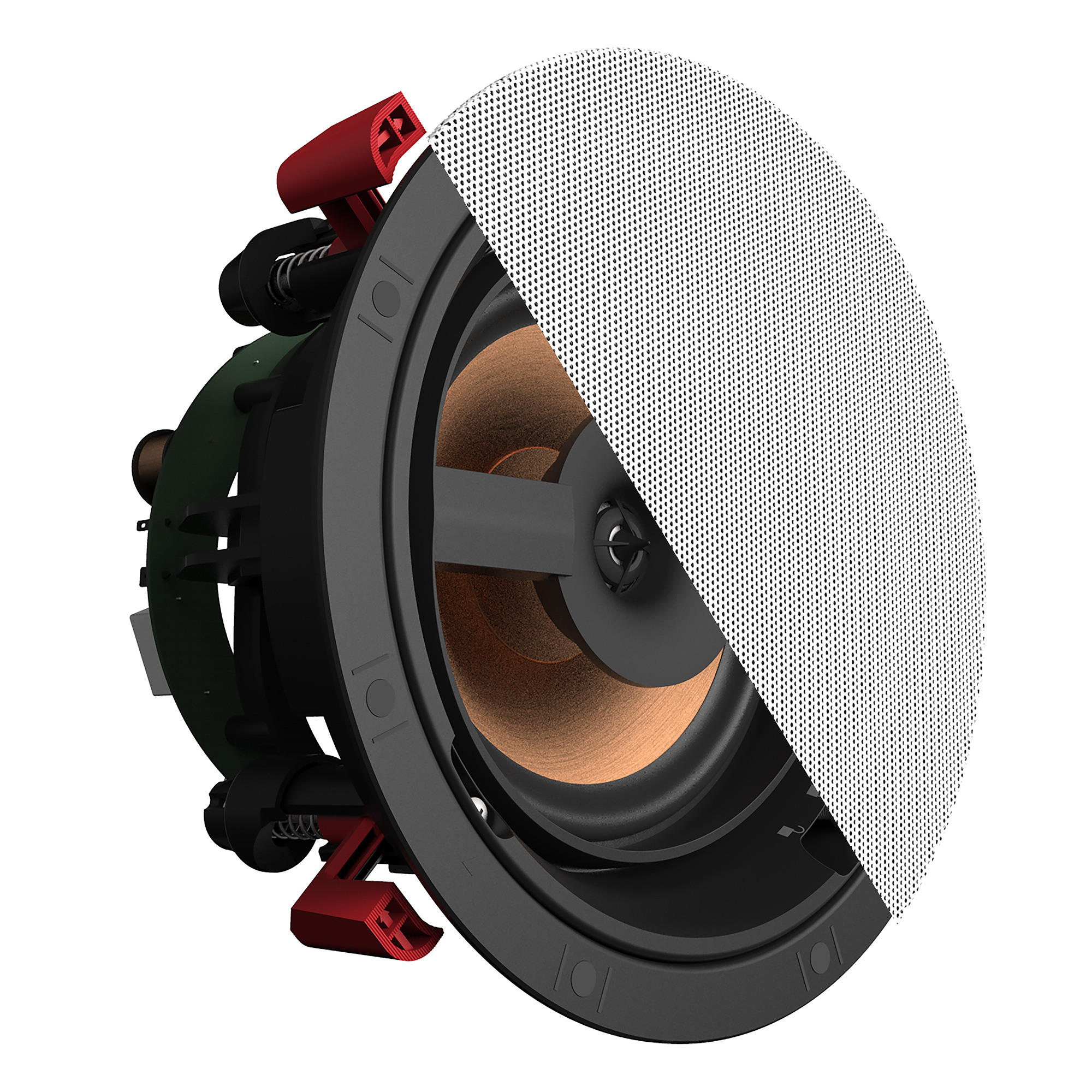

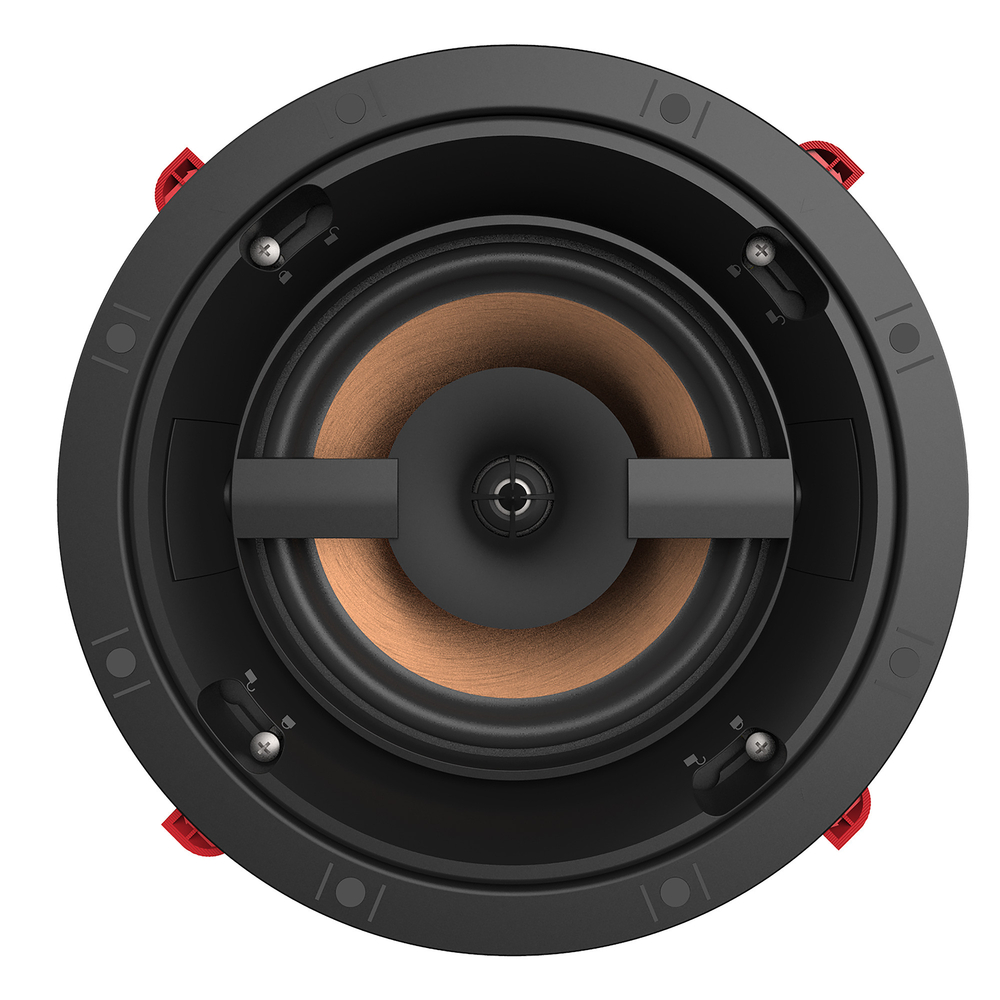

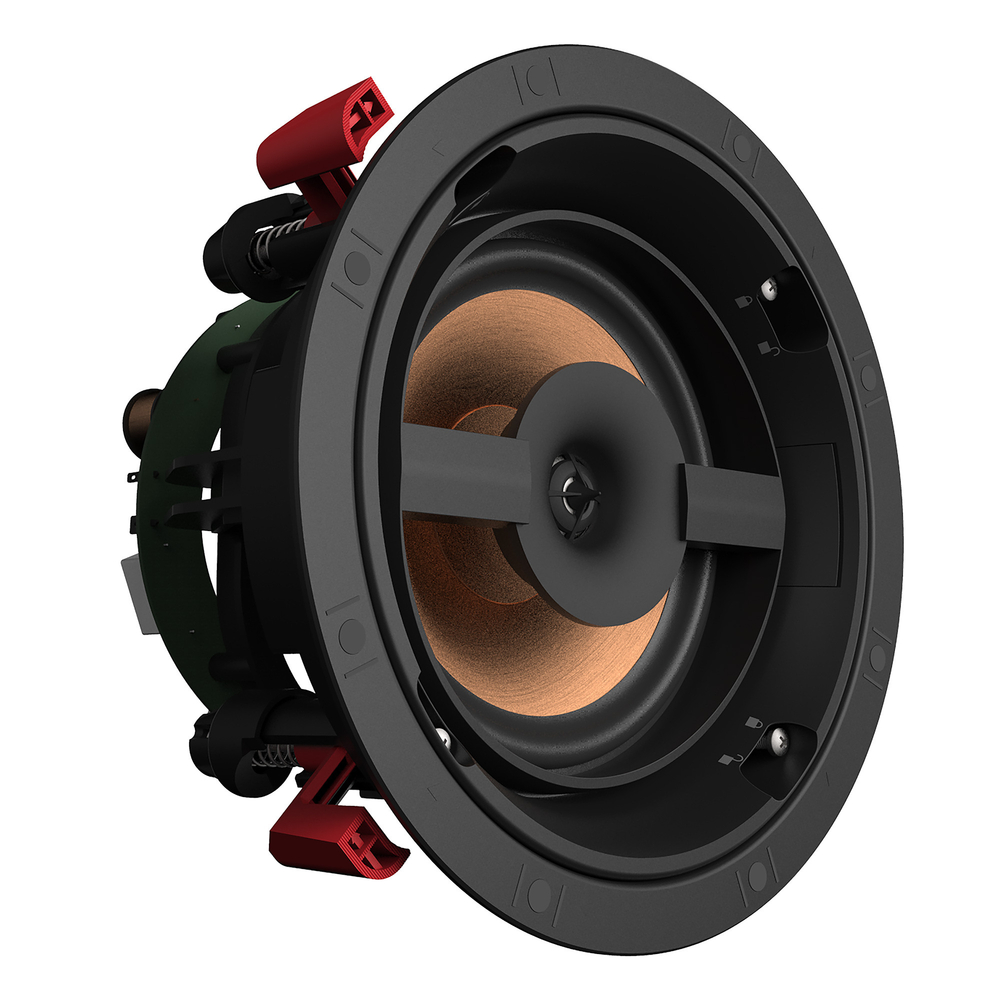

Klipsch PRO-16RC In-Ceiling Speaker

Sales tax for CA residents only

$299.00 $429.00

Klipsch PRO-16RC In-Ceiling Speaker, MSRP: $429.00

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.


  • 6.5” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

True Reference Acoustics
Using the same acoustic components and horn design as the highly acclaimed Reference box speaker line, the Professional Reference Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Klipsch Reference series. With a 6.5” IMG woofer and a 1” Aluminum Dome tweeter mated to a round Tractrix® horn, the Pro-16RC brings dynamic, powerful, detailed Klipsch Reference sound to your distributed audio or home theater system.

SecureFit Installation System
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.

Controlled Dispersion Technology
CDT technology allows for the tweeter and the woofer to be aimed up to 15° in any direction, helping to ensure on-axis frequency response at almost any listening position.

All New, Bezel-Free Magnetic Grille
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

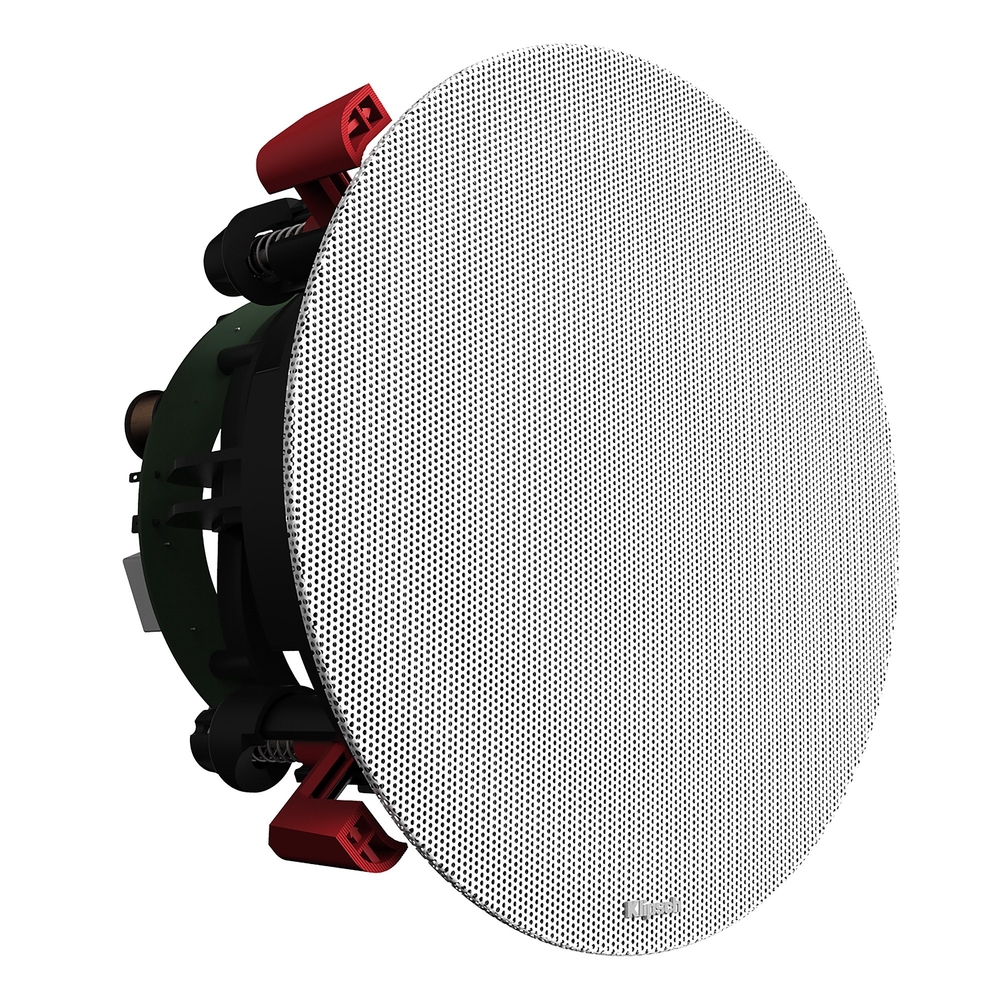

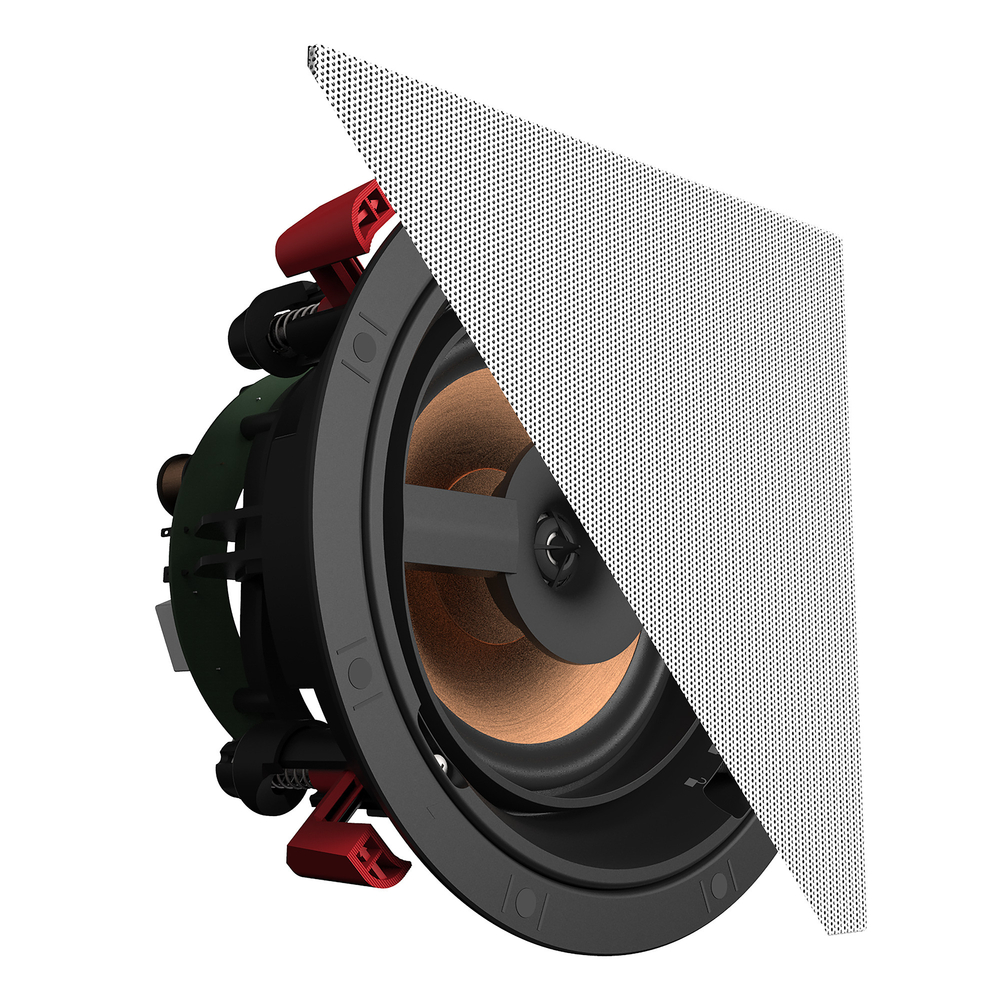

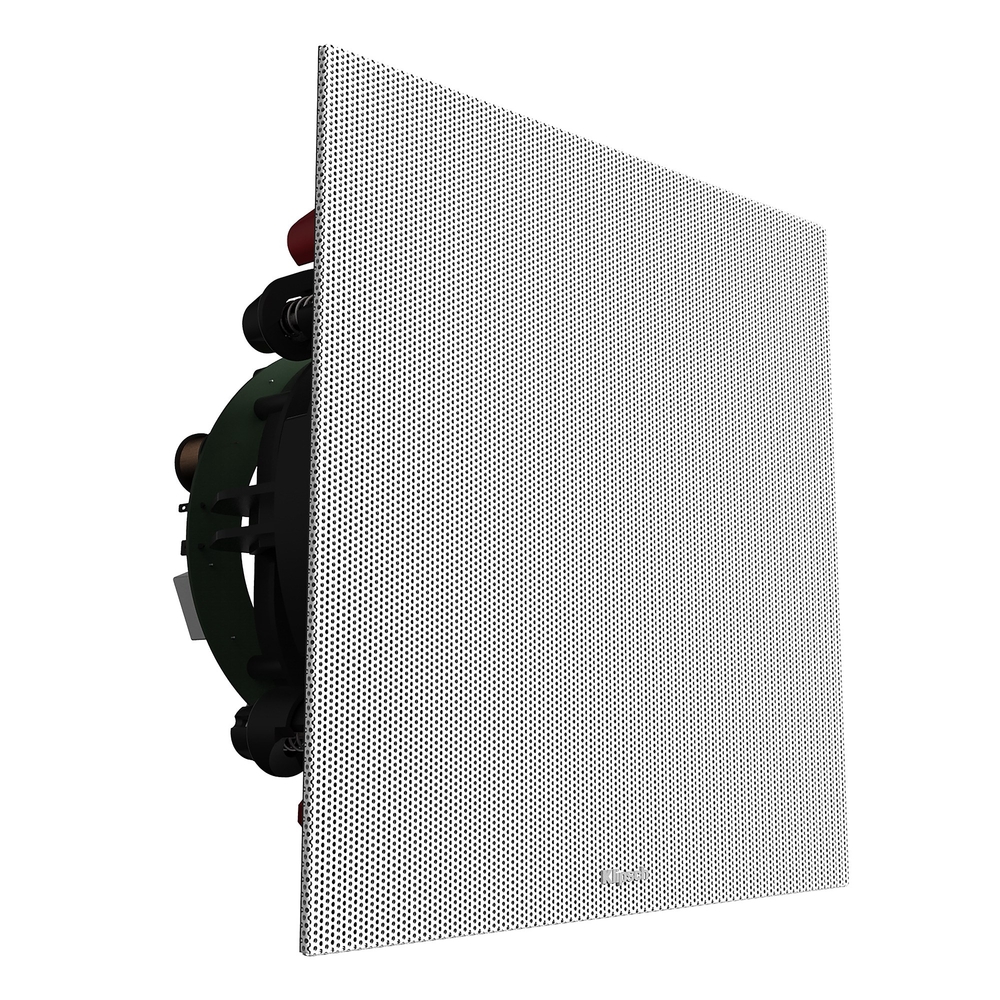

Round and Square Grilled Included
Architectural speakers not only need to sound great, but blend in seamlessly with even the most luxurious interior designs. The Professional Series Reference Premiere in-ceiling speakers include both round and square grilles in the box, so they look great in any space right out of the box.

PVC Paint Shield Included
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.


Frequency Range: 63Hz – 23kHz +/- 3dB
High Frequency Driver: 1″ (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver: 6.5″ (16.51cm) IMG Woofer
Coverage Angle: 100°
Power Handling: 50W RMS / 200W Peak
Sensitivity: 94 dB @ 2.83V / 1m
Impedance: 8 Ohm Compatible
Enclosure Type: ABS/Infinite Baffle
Finish: Black Baffle/Frame, White Paintable Grille
Product Dimensions: 9.31″ W x 9.31″ H x 6.4″ D ( 23.7cm W x 23.7cm H x 16.2cm D)
Cutout Dimensions: 8.15 ” (20.7cm)
Mounting Depth: 6.15″ 15.6cm)
Included: Round Grille, Square Grille, Paint Shield
Installation Kit: IK-650-C II (Sold Separately)
Built From: 2017
UPC: 743878034431
