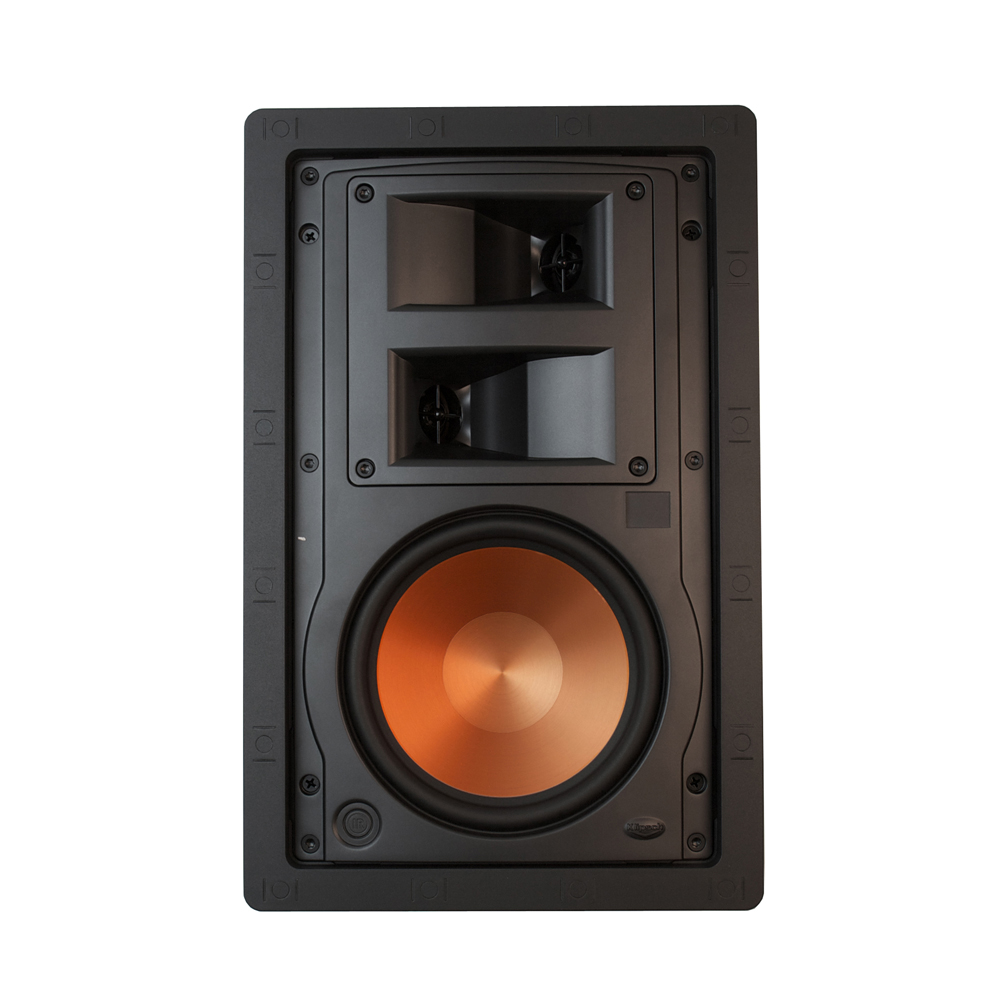

Klipsch R-5650-S II In-Wall Speaker

$229.00 $419.00

Klipsch R-5650-S II In-Wall Speaker, MSRP: $419.00

Engineered to bring a new dimension of reality and convenience to a flush-mount design, the Klipsch R-5650-S II in-wall surround sound speaker features a unique patented horn array that allows system designers to create enveloping sound fields and localized effects without disrupting a home’s decor.

Key Features:

  • Two vertically stacked Tractrix® Horn-loaded tweeters maximize surround sound effects
  • Horn-loaded technology increases acoustic output while significantly reducing distortion
  • IR receiver knock out
  • Elegant new, low-profile SlimTrim™ magnetic grille

Designed specifically for surround use in home theater applications, the R-5650-S II employs a refined 6.5-inch Cerametallic™ woofer for even tighter bass and dual 1-inch titanium compression drivers (tweeters). The addition of a Linear Travel Suspension to the tweeters increases high frequency detail and smoothness. Because of its patented horn array which is two vertically stacked Tractrix Horn-loaded tweeters pointing in opposite directions, the R-5650-S II outperforms conventional designs by maximizing diffusion clarity and efficiency while minimizing room interactions that blur sonic detail.

The R-5650-S II draws listeners into the middle of the action through the use of Klipsch’s proprietary Wide Dispersion Surround Technology or WDST™. The careful alignment of the two controlled-directivity Tractrix Horn tweeters angled opposite of one another yields an incredibly wide dispersion pattern.

Available in a paintable white finish, the R-5650-S II can be paired with the Klipsch IK-650-W installation kit (sold separately). With a mud ring breakaway wire tie and color-coded brackets, it also includes perforated metal wings that easily fasten to the studs via screws staples or nails. It can also be paired with the ME-650-W fire rated speaker enclosure (sold separately) to meet local building codes and/or reduce sound transfer to adjoining rooms.


Crossover Frequency: 3400Hz
Cutout Dimensions: 13″ H (33.02cm) x 8″ W (20.32cm)
Dimensions: 14.3″ H (36.32cm) x 9.3″ W (23.62cm)
Enclosure Material/Type: ABS/Infinite baffle, front flush with wall
Finish: White paintable frame and grill
Fire Rated Enclosure: ME-650-W (sold separately)
Frequency Response: 60Hz-23KHz ± 3dB
High Frequency Drivers: Dual 1″ (2.54cm) Titanium dome compression drivers with a dual Tractrix® Horn array for surround sound
Installation Kit: IK-650-W (sold separately)
Low Frequency Driver: 6.5″ (16.51cm) Cerametallicâ„¢ cone woofer
Mounting Depth: 3.75″ (9.5cm)
Nominal Impedance: 8 ohms compatible
Power Handling: 50W RMS / 200W Peak
Recommended Amplifier Power: 100 W
Sensitivity: 92dB @ 2.83V / 1m
Wire Gauge Accommodated: 12 ga
Built From: 2012
UPC: 743878024005
